Buying an R/F room: what does the two-in-one package leave out?
Compare radiography and fluoroscopy configurations, optional wall-stand equipment and the cost of sharing one room.
Editorially reviewed

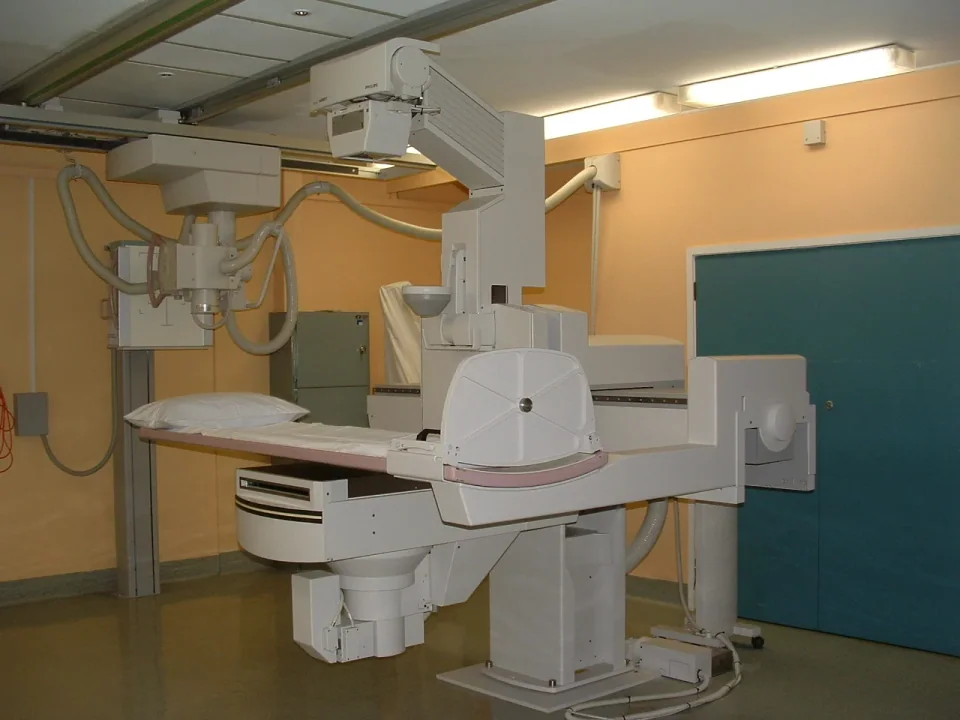

About this photograph
Not evidence of MMS stock, current support, performance or endorsement.
The decision at a glance.
- Start here
- Price the exact components needed for both workloads.
- Spend more when
- The accepted work or schedule justifies the complete upgrade.
- Watch the budget
- Add options and shared-capacity costs.
- Check the support
- Name common failure points and restoration responsibilities.
Ask the supplier
- Which wall-stand, detector and software options are included?
- What happens to each workload during a long session or shared-system failure?
- Which limitations remain after a proposed retrofit?
Two-in-one describes a capability, not a complete order
A combined radiography/fluoroscopy room can be a sensible way to use space and equipment. Its value depends on the exact examinations, positioning and schedule it can support. Write the radiography work and fluoroscopy work as two separate requirements before asking a supplier to combine them.
Siemens describes LUMINOS Impulse as a digital R/F system, but marks the Bucky wall stand, wireless MAX wi-D detector and stitching among its options. A base-system price and a fully configured radiography package can therefore describe different purchases. Require the components needed for both parts of the brief.
Identify the installed imaging chain
The Luminos Fusion page illustrates another trap: the family is described with both image-intensifier and flat-detector versions. A model-family name alone does not identify the detector in an offered room. Record the exact system version, detector, generator, tube and software before comparing it with a new flat-panel package.
A flat detector may be attractive for the accepted workflow, but the label does not establish a particular dose reduction, image-quality advantage or repair rate. Assess the actual installed performance and replacement exposure. A more recent image chain can still be attached to a package whose other components or applications do not meet the brief.
A radiography retrofit cannot renew the entire R/F room
A DR detector can be worth evaluating when the radiography imaging chain is the limitation and the remaining equipment is suitable. Keep that question separate from the fluoroscopy function, table motion, controls and other room components. Replacing one part does not establish that the whole room is ready for another service life.
Compare three complete scopes: retain with a specific repair, add a supported radiography retrofit, or replace the R/F package. For each, state which fault or missing capability it resolves and which liabilities remain. A low retrofit price is meaningful only against the work it actually accomplishes.
Sharing equipment creates a scheduling choice
One combined room cannot provide two independent room schedules at the same time. Estimate the occupied time for each examination type, including transfer, positioning, preparation and turnover. Check where routine radiography patients go during a longer fluoroscopy session or a shared-system failure.
For a small programme, flexible scheduling may make one room good value. A busier service may benefit more from keeping routine radiography separate than from buying every option on a shared room. Compare the practical access and interruption consequences, not just the number of functions in a brochure.
Walk the complete room, not just the table
Demonstrate the required patient transfers and positions with the supplied table, detector, wall stand, controls and accessories. Include the actual staff working space and any clinically necessary supporting equipment. A component that fits on a plan can still obstruct a required movement or service access.
Assign the qualified radiation-protection and clinical teams to the actual room assessment and acceptance programme. Do not reuse another installation's shielding design or treat a selected clinical image as commissioning evidence. The purchase should include the work necessary to establish the accepted local service.
Count common failures once, and separate components honestly
List tube/generator, detector or image intensifier, table mechanisms, controls, workstation and software in the service schedule. Ask whether a shared component failure would stop both radiography and fluoroscopy. Build the continuity plan around that dependency rather than assuming two advertised functions provide redundancy.
Remote support is also conditional: Siemens' Impulse page specifies connectivity and service-contract prerequisites. It is not a substitute for an on-site restoration route. Choose the complete package whose useful capability, support and scheduled availability fit the hospital. Retain an accepted older room when a targeted remedy makes that the stronger economic choice.
Compare the options.
Complete Impulse package
- Capability
- Selected radiography plus fluoroscopy.
- Best fit
- Both workloads fit the schedule.
- Cost to watch
- Options and shared-room access.
Exact Fusion version
- Capability
- Configuration-specific R/F.
- Best fit
- Evidence supports the offered room.
- Cost to watch
- Installed condition and support.
Targeted remedy
- Capability
- Resolves a defined limitation.
- Best fit
- Replacement would add little useful capability.
- Cost to watch
- Remaining liabilities.
Option notes, costs & support 3 options
LUMINOS Impulse with required radiography options
Complete flat-panel R/F example
- Best for
- Both accepted workloads fit one shared room.
- Why consider it
- Makes the dynamic detector and optional radiography scope explicit.
- The trade-off
- Base system may omit the wall stand, wireless detector or other needed functions.
- Price & package
- Installed base plus selected options and room works.
- Support
- Confirm remote prerequisites and on-site restoration.
Luminos Fusion, exact installed version
Used-family comparison
- Best for
- The offered image chain and support meet the accepted brief.
- Why consider it
- Forces identification of image-intensifier versus flat-detector configuration.
- The trade-off
- Family name is not a complete specification.
- Price & package
- Actual condition, applications and replacement exposure.
- Support
- Establish exact regional and serial support.
Retain room with targeted repair or eligible DR retrofit
Limited remedy
- Best for
- The remaining accepted equipment is suitable.
- Why consider it
- Avoids paying for functions the service does not need.
- The trade-off
- A radiography remedy may leave fluoroscopy or mechanical limitations.
- Price & package
- Complete remedy and retained liabilities.
- Support
- Separate responsibility for retrofit and original room.
Budget for the complete service.
R/F value depends on accepted work delivered by the complete room, including options, support and the cost of shared capacity.
- Imaging-chain configuration
- Optional radiography equipment
- Table and controls
- Shared schedule
- Restoration dependencies
Before you commit.
- Specify both workloads.
- Identify the installed imaging chain.
- Compare complete options.
- Test occupied-room workflow.
- Plan for shared-component downtime.
Further checks & evidence limits
Questions to resolve
- Which wall-stand, detector and software options are included?
- What happens to each workload during a long session or shared-system failure?
- Which limitations remain after a proposed retrofit?
What the evidence does not establish
- No dose, clinical superiority, current price or measured reliability ranking.
- Regional family pages do not verify a specific offered unit.
- No room shielding or operating protocol prescribed.
Sources & supporting evidence.
Manufacturer claims and seller offers are identified below. Prices apply to the stated offer and review date; confirm availability, configuration and delivered cost.
- LUMINOS ImpulseSiemens Healthineers · manufacturer · checked October 18, 2026
Full relevant written feature/option footnotes read: dynamic flat-detector R/F, optional MAX wi-D, wall stand and stitching; remote service has infrastructure/contract prerequisites. No technical image-derived dimensions or dose claim.
- Luminos FusionSiemens Healthineers Morocco · manufacturer · checked October 18, 2026
French written product page identifies image-intensifier and flat-detector versions. Regional marketing does not establish current availability of any offered configuration.
